ACE Adapter – Quickstart Guide

To change the preset of your ACE Adapter, you must use the RCM Programming Tool. Click here to be taken to the download page.

1. Open the RCM Programming Tool.

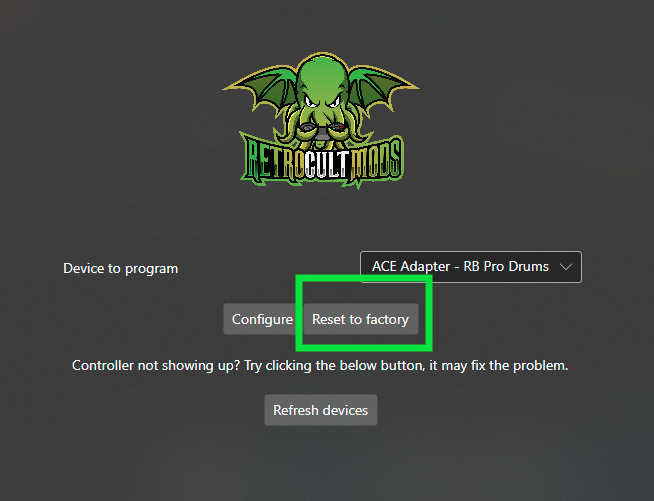

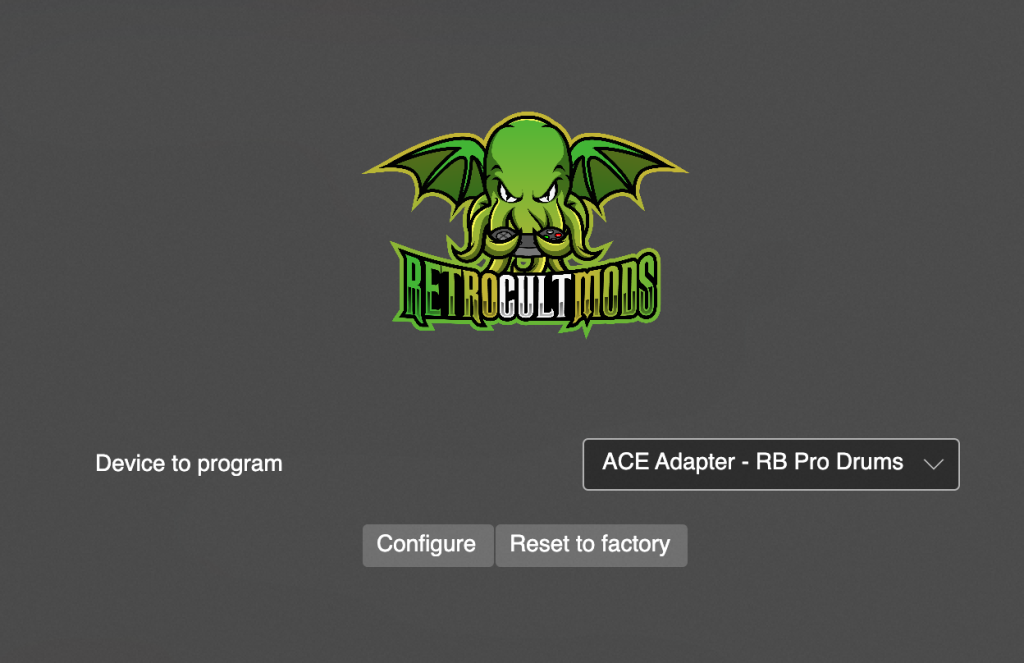

2. Plug your ACE Adapter into your computer. You will see it appear with “Configure” and “Reset to factory” buttons.
3. Click “Configure“

3. You will be brought to this screen in the Programming Tool. (First image below)

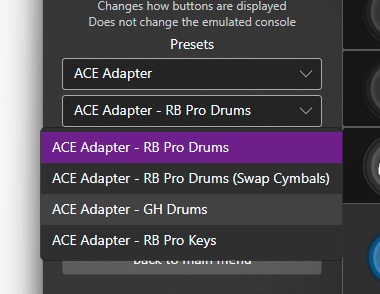

   If you are attempting to change to GH Drums, click the dropdown on the left side, then select that preset. After, click “Save Settings“. You will do the same process to revert back to Rock Band drums.

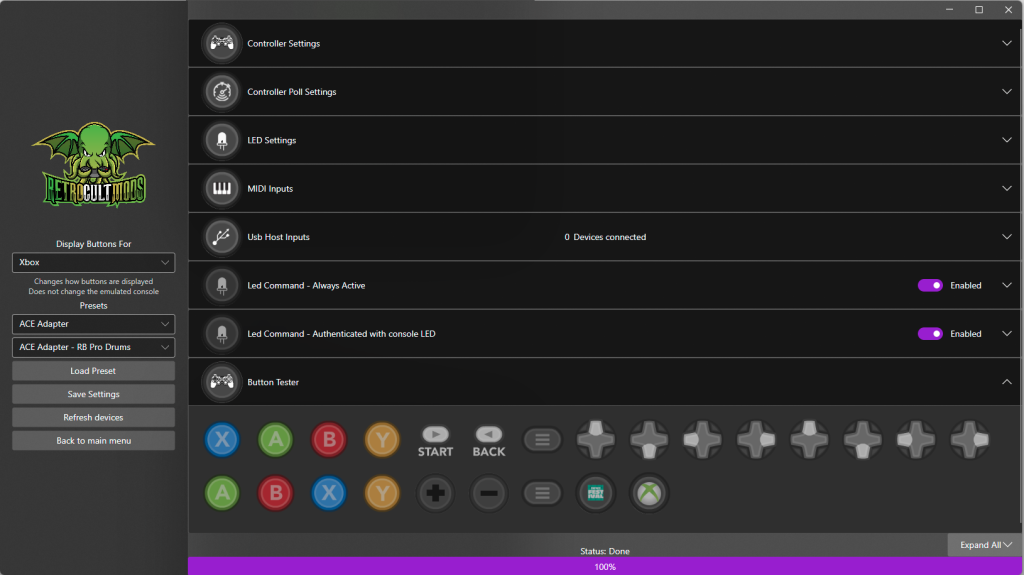

4. You will want to wait until the bar at the bottom reaches 100% and says Status: Done.

Final notes:

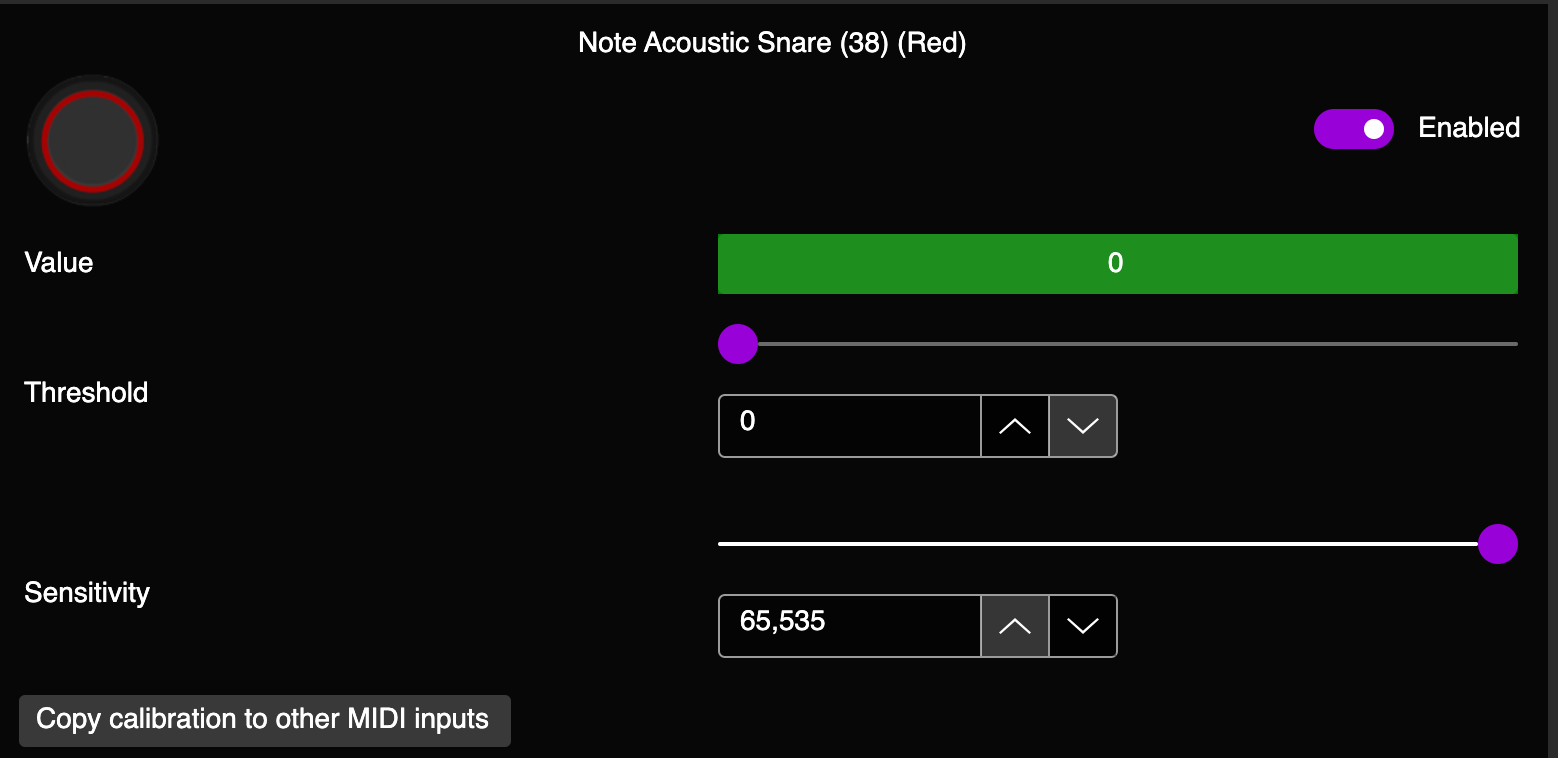

You may need to adjust the hit sensitivity of your drums and cymbals, which can be done under the MIDI Inputs tab. This process is a little bit more advanced, but the effort of setting up what works best for you is worth it. This will be elaborated upon in the next section.

1. Before even attempting to play a game, we need to check to see if the ACE Adapter is reading inputs from your device. First, plug the ACE Adapter into your computer, then open RCM Programming Tool. Once the programming tool detects your adapter, click “Configure“.

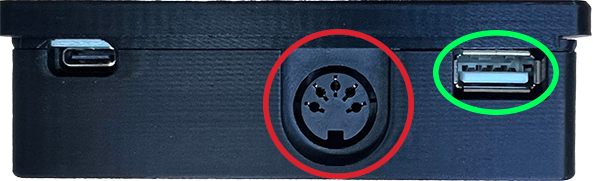

2. Plug in your controller or electronic drum kit.
   • If you are using USB-MIDI, you should see “1 Devices connected” when you plug it in.

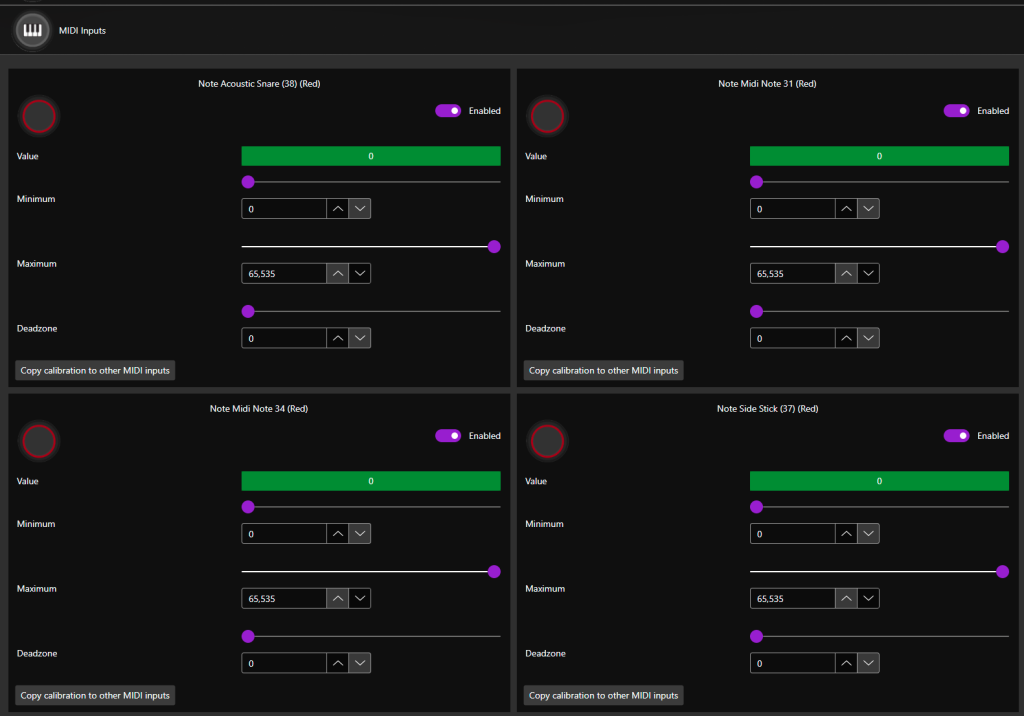

3. Click the MIDI Inputs dropdown, then start tapping on your drums while looking through the inputs to find if they are appearing. Write down the MIDI number at the top of each input for easy reference.

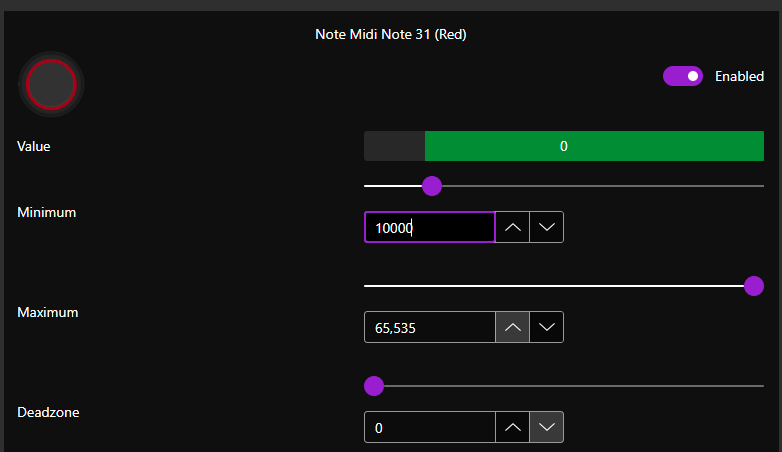

4. Once you have your list, go to each input and hit them as hard as you would when normally playing. Raise the MINIMUM to be a few thousand lower than the amount you hit at. This will give a little bit of room for variance in play. DO NOT CHANGE MAXIMUM OR DEADZONE.

5. Once you’ve set up each input, click “Save Settings” on the left side of the window. Once the programming tool has finished writing the firmware, it will show “Status: Done” and 100%. Close the software.
6. Load up your favorite game and play! Or plug into your console and play!
   • If you are attempting to play Rock Band 4 on Xbox One/Series, you will have to authenticate. Click here to learn how to do that!

1. To use Pro Keys on the ACE Adapter, you must first change the preset to Pro Keys. Click here to be taken to the step-by-step programming guide.
2. Before even attempting to play a game, we need to check to see if the ACE Adapter is reading inputs from your device. First, plug the ACE Adapter into your computer, then open RCM Programming Tool. Once the programming tool detects your adapter, click “Configure“.
   • NOTE: If you are using standard MIDI connection, make sure that the keyboard you’re using it plugged in either by a battery, USB power connection, or wall power. It will not function without that.
3. Plug in your keyboard.
4. If you are using USB-MIDI, you should see “1 Devices connected” when you plug it in.

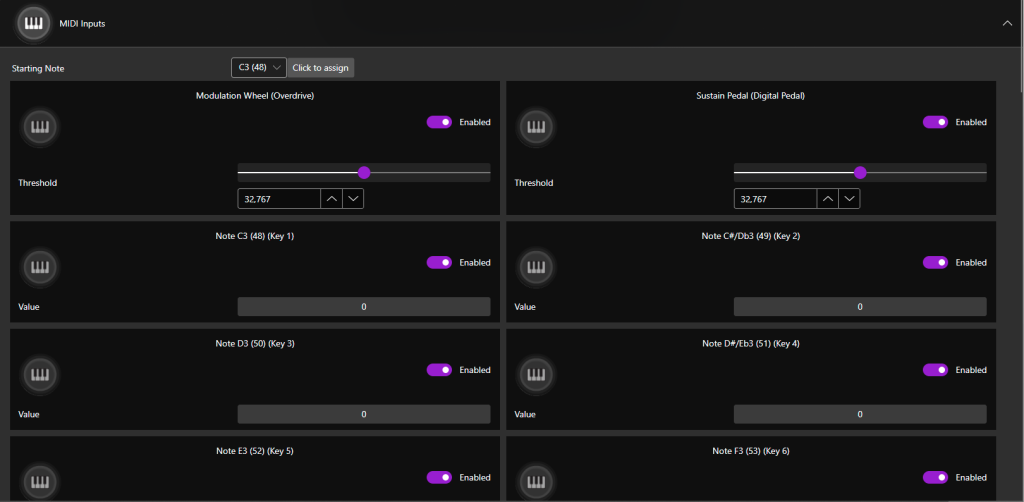

5. Click the MIDI Inputs dropdown, then start pressing keys down and look around the inputs to see if inputs are coming through.

5. Once you’ve verified that inputs are going through, there is nothing to calibrate in the programming tool. You can now plug into a console and start playing!
   • Do note that if you are using the Rock Band 3 keytar with standard MIDI as opposed to USB-MIDI, you will have to navigate the menus with the ACE Adapter buttons as opposed to the ones on the controller.

There are various reasons for this occurring.
Make sure that your adapter is in “D” mode when plugging it in. If it is in “K” mode, the programmer will not see it. Move the switch on the device back to “D”.

Sometimes just unplugging it and plugging it back in will help or restarting the programming tool.

Lastly, you may need to hard reset the device. Holding the reset button (small little button on the bottom right of the face) while plugging the adapter in will put it into recovery mode, which you can then open the RCM Programming Tool and erase and reset to factory.

If this doesn’t work, send us an email at support@retrocultmods.com

You need to swap the preset to “RB Drums (Swap Cymbals)” in the RCM Programming Tool!
